Creasers / Perforators

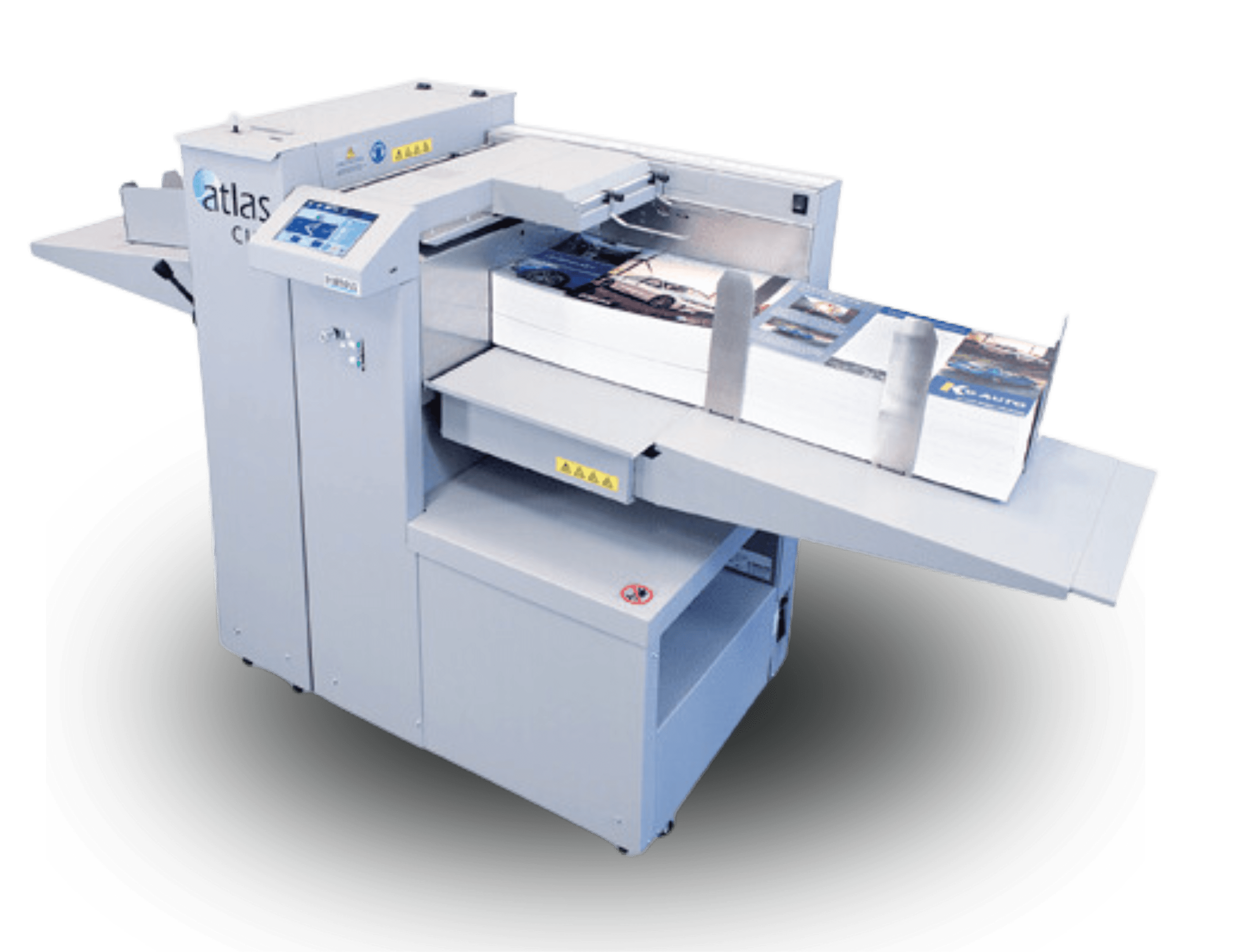

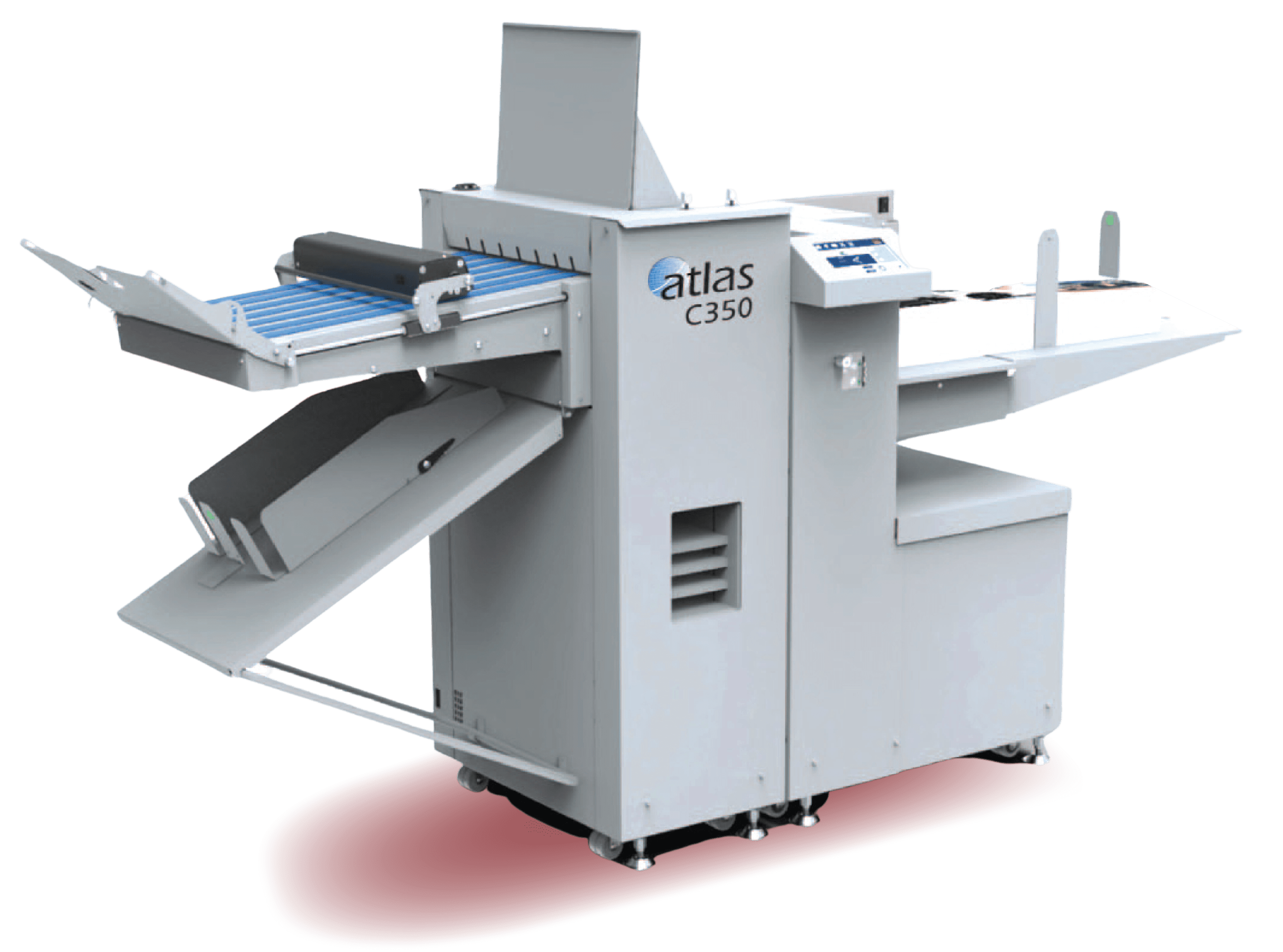

High-Speed Automatic Creasers/Perforators
Leverage outstanding feature offerings in a compact footprint. Intuitive touchscreen control panels and top vacuum pile feed systems make these devices ready to take on high volume jobs with ease. Unique heavy-duty creasing matrices eliminate cracking in digital prints, ideal for on-demand jobs requiring a professional finished look.
FINISH YOUR PRINT JOBS WITH EASE
Key Features
- Fully automatic setup
- Top vacuum infeed table
- Height-adjustable outfeed stacker
- 7" color touchscreen
- Up to 8,500 sheets per hour
- Infeed stack up to 7.8" high
- Sheets up to 51" x 15"
- Quick-release blade system
- Second creasing blade kit
- Cross/part perforation kit
Creasers/Perforators
DSI High-Speed Automatic Creasers/Perforators offer outstanding features in a compact footprint. Intuitive touchscreen control panels and top vacuum pile feed systems make our devices ready to take on high volume jobs with ease. Unique heavy-duty creasing matrices eliminates cracking in digital prints, ideal for on-demand jobs requiring a professional finished look. Equipped with an optional second creasing/perforating blade kit, which allows for single-pass up/down creasing and cross/partial perforation for hinges, book covers, multi-panel brochures, and tear-off applications.
Top-loading vacuum in feeds adjust automatically to handle media stacks up to 7.8” high. Optical sensors control sheet separation by constantly monitoring the float zone and making adjustments on-the-fly. Designed to handle today’s larger media sizes, DSI creaser/perforator feed tables extends to accommodate media up to 15” W x 51” L, in weights from 80-400 gsm, while the adjustable outfeed stacker holds processed sheet stacks up to 4.7” high.
Using the color touchscreen control panels make setup quick and easy. Simply enter the sheet length, weight, and fold type, and the crease locations are calculated automatically. Users can easily choose from pre-programmed common creases, or create and save an unlimited number of custom jobs.
Leverage quick-change creasing blades which are easy to swap in and out in just seconds, without using any tools. Also included are in-line rotary perforation kits, which allows for creasing and perforating in a single pass. An optional cross perforating blade kit can be used to combine creasing and cross perforating in a single pass for a variety of jobs including brochures with tear-offs.
Additional options include a second creasing blade kit, as well as narrow and ultra narrow creasing blade kits.
With high-speed output, user friendly features and the ability to handle large media sizes, DSI creasing / perforating devices are a welcome addition to today’s digital print environments.
